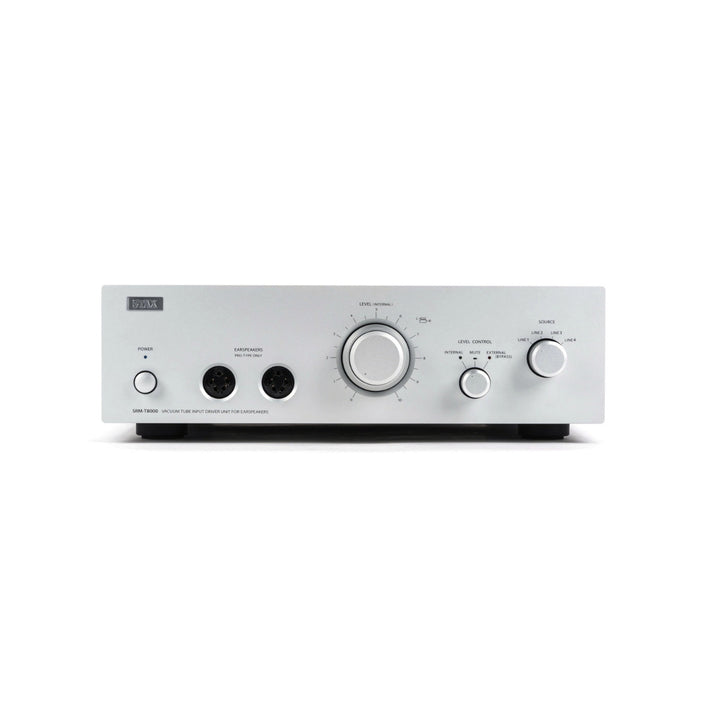

STAX SRM-T8000 Electrostatic Headphone Amplifier

STAX SRM-T8000
Electrostatic Headphone Amplifier

• SRM-T8000 is Stax's latest flagship electrostatic headphone amplifier utilizing hybrid technology. It employs two 6922 in the input stage, driving a Class-A solid-state output stage. The vacuum tubes isolated in a separate section made of vibration-proof damper and shield cover to eliminate vibration and noise. The high-capacity large toroidal transformers and selected high-quality parts allow the highest refinement in sound.

Specifications:

• Frequency response：1～115kHz per channel
• THD：<0.01% @1kHz per channel
• Gain：60dB
• Rated input level：100mV/100V
• Maximum output voltage ：470V r.m.s./1kHz
• Input impedance：Unbalanced 50kΩ/ Balanced: 50kΩx2
• Analog Input ：RCA x2、XLR x1
• Headphone output ：Stax PRO bias output x2
• Volume control bypass: Allows the use of an external preamp
• Vacuum tube: 6922 ｘ2
• Power consumption  ：95W（58W when idle）
• External dimension   ：320(W)×103(H)×395(D)mm / 12.6" x 4" x 15.6"
• Weight：7.3kg / 16.1 lbs
• Voltage: 120V/60HZ
